In fluid systems, preventing backflow is essential to ensure efficiency, protect equipment, and maintain system integrity. One of the simplest yet most reliable components for this purpose is the swing check valve. These valves are designed to allow fluid to flow in one direction only, automatically preventing reverse flow that could damage pumps, contaminate supplies, or disrupt operations.
Swing check valves are used in a variety of industries, including water distribution, wastewater treatment, industrial process systems, and oil and gas. This guide will explain how they work, where they are used, and the benefits they offer to fluid systems.
What is a Swing Check Valve?
A swing check valve is a type of non-return valve fitted with a hinged disc or flap inside the valve body. As fluid flows in the intended direction, the disc swings open to allow passage. If the flow stops or reverses, gravity and back pressure cause the disc to swing back into a closed position, sealing against the valve seat and preventing reverse flow.
These valves are self-operating and require no external controls or power. Their simple design makes them a cost-effective, low-maintenance solution for ensuring unidirectional flow. Swing check valves are particularly effective in systems where backflow could damage sensitive equipment or compromise fluid quality.
Swing Check Valves for Reliable Backflow Prevention
The DHV WCB Cast Steel Swing Check Valve is designed for robust industrial applications, offering excellent durability and performance in high-pressure systems. With sizes ranging from 2″ to 6″ and flanged ANSI 150 connections, it is ideal for use in water, steam, and oil pipelines where backflow prevention is critical. Its carbon steel construction ensures long-lasting operation in demanding environments.

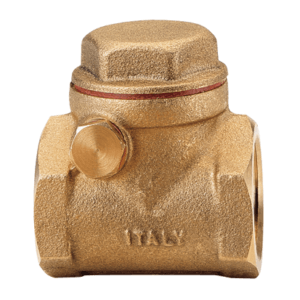

For smaller systems, the ITAP Swing Check Valve provides a compact and efficient solution. Available in brass or stainless steel, with sizes from 3/8″ to 4″, it is perfect for protecting residential, commercial, and light industrial installations. Its threaded connections make it easy to install, while the 12–8 BAR rating ensures reliable performance in a variety of fluid systems.
DHV WCB CAST STEEL SWING CHECK VALVES
SWING CHECK VALVES
How Does a Swing Check Valve Work?
The operation of a swing check valve relies on the movement of the fluid within the system. When fluid enters from the inlet side, the pressure pushes the disc away from the valve seat, allowing flow to continue. As long as the fluid is moving forward, the disc remains in the open position.
If the flow stops or begins to reverse, the pressure on the outlet side drops while pressure on the inlet side increases. This change causes the disc to swing back against the seat, closing the valve and preventing backflow. The valve responds instantly to pressure changes, making it highly effective in maintaining system safety and performance.
Applications of Swing Check Valves
Swing check valves are widely used in applications where backflow prevention is critical. In municipal water systems, they protect clean water supplies from contamination. In pump installations, they prevent reverse flow that could cause water hammer and damage pump components. They are also used in wastewater systems to maintain proper flow direction and avoid system backups.
In industrial process systems, swing check valves safeguard heat exchangers, compressors, and other equipment from the effects of backflow. In oil and gas pipelines, they ensure that high-pressure fluids maintain the correct direction, preventing costly operational issues.
Benefits of Swing Check Valves
Incorporating swing check valves into fluid systems offers several key benefits. They protect equipment by stopping reverse flow that can cause sudden pressure surges, known as water hammer, which can damage pipes and fittings. They help maintain consistent system performance and reduce the risk of contamination in critical applications such as potable water networks.
Their simple, self-acting design means there are no external controls or energy sources required, making them highly reliable and economical to operate. With minimal moving parts, maintenance requirements are low, and the valves provide long service life even in demanding environments.
Selecting the Right Swing Check Valve
When choosing a swing check valve, several factors should be considered to ensure compatibility with your system. The material of construction must suit the fluid being handled, with stainless steel, cast iron, and bronze being common options for different applications. The size of the valve should match the flow rate and pressure of the system.
It is also important to consider whether a standard swing check valve will suffice or if a specialised variant, such as one with a soft seat for better sealing or a spring-assisted design for faster closure, is required. Consulting with an experienced supplier like ISIS Fluid Control can help you select the best valve for your application.
Why Choose ISIS Fluid Control for Swing Check Valves?
At ISIS Fluid Control, we supply high-quality swing check valves designed for reliable performance across a wide range of industries. Our products are built to the highest standards, combining robust materials and precision engineering to ensure optimal flow control and long service life.
Our team of technical specialists can provide expert advice on selecting the right valve for your system, ensuring you achieve the highest levels of safety, efficiency, and performance.
Explore our selection of swing check valves and find the ideal solution for your fluid system. Whether you need a valve for a municipal water network, an industrial process line, or a high-pressure pipeline, we have the expertise and product range to meet your needs. Contact our team today to learn more about our solutions and how we can support your operations.
