Designed for easy, in-line maintenance, the XF Series is a robust 3-piece bolted, cast valve and is a great choice for any on-off service application. Designed according to the ASME B16.34, it is a durable and reliable quarter-turn valve. It is available in carbon steel A216 WCB and stainless steel A351 CF3M, offering options to suit different application requirements. The valve features bi-directional sealing with C-RPTFE soft seats and is available in both full and reduced bore configurations. It is very versatile, easy to operate, and incorporates low fugitive emission, fire safety, and antistatic design features.
Steam Isolation Valves

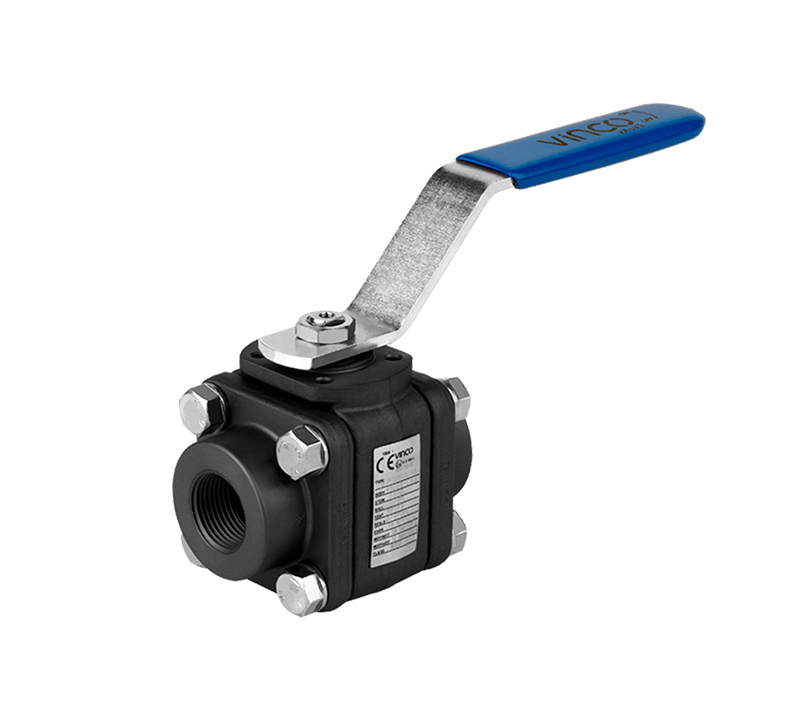

VINCO XF
HIGH PERFORMANCE BALL VALVE
- Material
- Carbon Steel
- Sizes
- 1/2" - 2"
- Connection
- Flanged, Threaded
- Pressure
- 2000 psi
- Design
- 3 Piece
Need help choosing? Call our sales engineers on 01608 645755
Standard Features
- Floating ball | Soft seated | Bidirectional
- Full/Reduced bore
- Fire safe design | Antistatic design
- Low emission packing | Live loaded stem packing
- Double encapsulated body sealing
- ISO 5211 top works for automation
- Anti blowout stem
- Self relieving seats | Pressure equalizing hole
Optional Features
- Welded block end connection
- Upstream pressure relief hole
- V-Port for flow control applications
- NACE MR0175 / ISO 15156 compliance
- Food grade compatible version (CE1935/2004 version)
| Model | XF |
|---|---|
| Material | Carbon Steel |
| Sizes | 1/2" - 2" |
| Connection | Flanged, Threaded |
| Pressure | 2000 psi |
| Design | 3 Piece |
| Division | Steam |
| Category | Isolation Valves |
| Type | Ball Valves |
Use the enquiry form below to ask about this product, or add a quantity to any line and press Add to build a sales order. Open the basket icon at the top of the page to review and send it.
PLEASE NOTE: the prices shown are full list prices. If you have an account with us these will be updated by our team once your order is placed.
| Article no. | Description | Price £ | Price € | Quantity |
|---|---|---|---|---|
| 841015 | XF | 1/2" BSP 3-PCE CS LOCKABLE BALL VALVE | £203.00 | €214.00 |
|
| 841020 | XF | 3/4" BSP 3-PCE CS LOCKABLE BALL VALVE | £249.00 | €262.00 |
|
| 841025 | XF | 1" BSP 3-PCE CS LOCKABLE BALL VALVE | £282.00 | €296.00 |
|
| 841032 | XF | 11/4" BSP 3-PCE CS LOCKABLE BALL VALVE | £390.00 | €409.00 |
|
| 841040 | XF | 11/2" BSP 3-PCE CS LOCKABLE BALL VALVE | £441.00 | €463.00 |
|
| 841050 | XF | 2" BSP 3-PCE CS LOCKABLE BALL VALVE | £761.00 | €799.00 |
|
