The XFC Series is a floating ball valve designed for use in extreme temperatures as low as -100⁰C, making it ideal for liquefied gases such as Liquefied Carbon Dioxide (LCO2), Liquid Ammonia (LNH3) and other similar applications. It features an advanced unidirectional design with an upstream relief hole to release overpressure safely. The valve is equipped with a rib and groove, fool-proof system to ensure proper installation and operation of the safety feature. The XFC Series is available with threaded or welded connections, making it the perfect solution for compact and permanent systems that require high reliability and safety.
Manual Valves Ball Valves VINCO

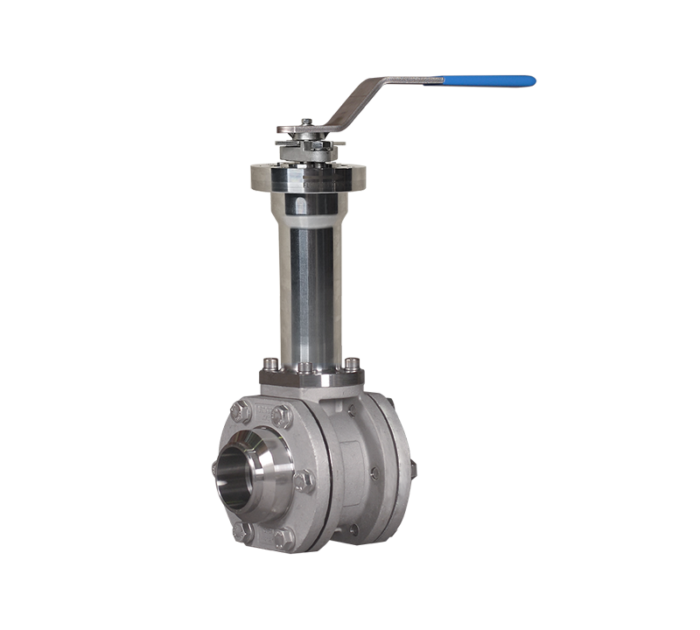

VINCO CXF
3 PIECE BALL VALVE FOR EXTREME LOW TEMPS
- Material
- Stainless Steel
- Sizes
- 1/2" - 6"
- Connection
- Threaded, Welded
- Pressure
- CLASS 150, CLASS 300, CLASS 400, CLASS 800
- Design
- 3 Piece, Liquefied Ammonia, Liquefied Carbon Dioxide
Choose an article number from the sizes & pricing table to add it to your quote, or send us an enquiry.
Need help choosing? Call our sales engineers on 01608 645755
Standard Features
- Floating ball | Soft seated | Unidirectional
- Full/Reduced bore
- Antistatic design
- Low emission packing | Live loaded stem packing
- Double encapsulated body sealing
- ISO 5211 top works for automation
- Anti blowout stem
- Self relieving seats | Pressure equalizing hole
- Food grade compatible version (CE1935/2004 version)
Optional Features
- Welded block end connection V-Port for flow control applications
| Model | CXF |
|---|---|
| Material | Stainless Steel |
| Sizes | 1/2" - 6" |
| Connection | Threaded, Welded |
| Pressure | CLASS 150, CLASS 300, CLASS 400, CLASS 800 |
| Design | 3 Piece, Liquefied Ammonia, Liquefied Carbon Dioxide |
| Brand | VINCO |
| Division | Manual Valves |
| Category | Ball Valves |
Use the enquiry form below to ask about this product, or add a quantity to any line and press Add to build a sales order. Open the basket icon at the top of the page to review and send it.
PLEASE NOTE: the prices shown are full list prices. If you have an account with us these will be updated by our team once your order is placed.
| Article no. | Description | Price £ | Price € | Quantity |
|---|---|---|---|---|
| VINCO CXF | 3 PIECE BALL VALVE FOR EXTREME LOW TEMPS | POA | POA |
