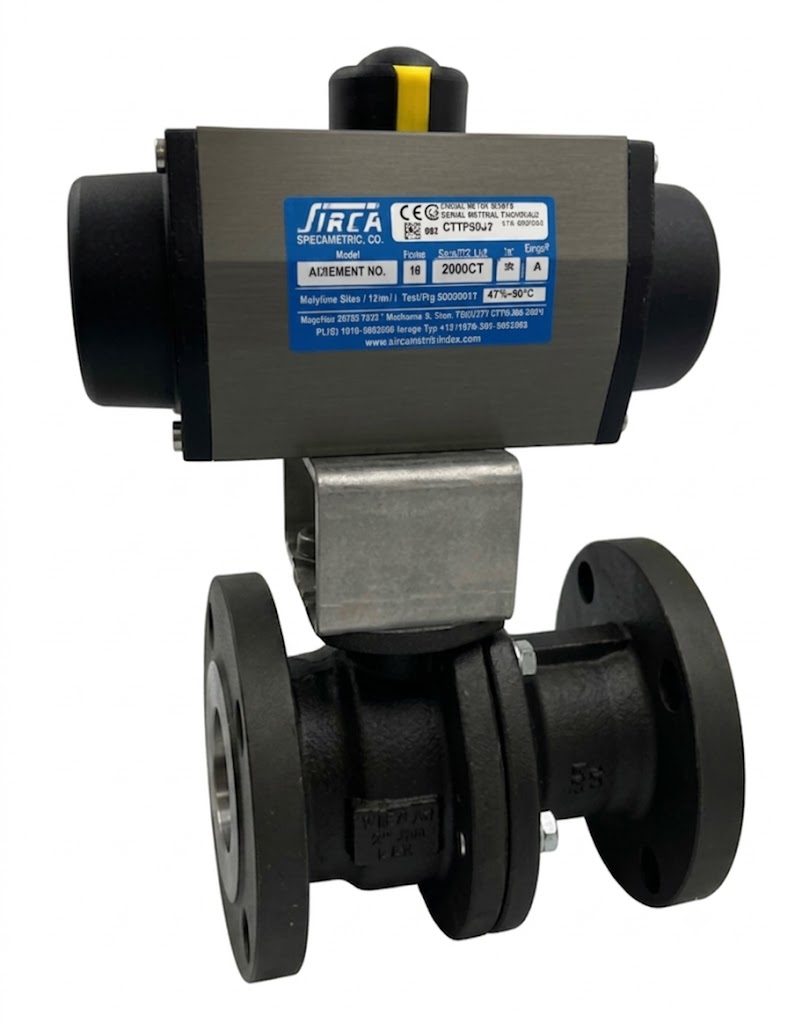

VINCO CF + SIRCA AP
PNEUMATICALLY ACTUATED DIN FLANGED BALL VALVE – SPRING RETURN (CS)

The Vinco CF Series flanged ball valve assembled with a SIRCA double acting pneumatic actuator provides a reliable and robust automated shut-off solution for industrial process applications.
The valve features a split-body, full-bore floating ball design, offering low operating torque, bi-directional flow, and tight shut-off performance. Flanged end connections allow straightforward installation into pipeline systems, while the ISO 5211 mounting interface enables coupling of the pneumatic actuation.
The SIRCA Spring Return pneumatic actuator will failsafe upon loss of air.
This valve and actuator assembly is suitable for a wide range of industrial services including utilities, steam, industrial gases, general process fluids, and automation applications where remote or automated operation is required.
