The CF Series is a ball valve that offer the industry a true all-rounder and covers a large range of applications. It features a split body construction and uses C-RPTFE seats for maximum chemical compatibility combined with minimum coefficient of friction. It is a bi-directional, zero leakage valve and has an ISO 5211 top works, which simplifies the actuator and gear operator mounting. It has a self-relieving seat design for cavity relief and is available in PN40 and PN16, short pattern F4/F5 and long pattern F1. The high-quality investment cast makes it a reliable solution for the toughest requirements.
Steam Isolation Valves

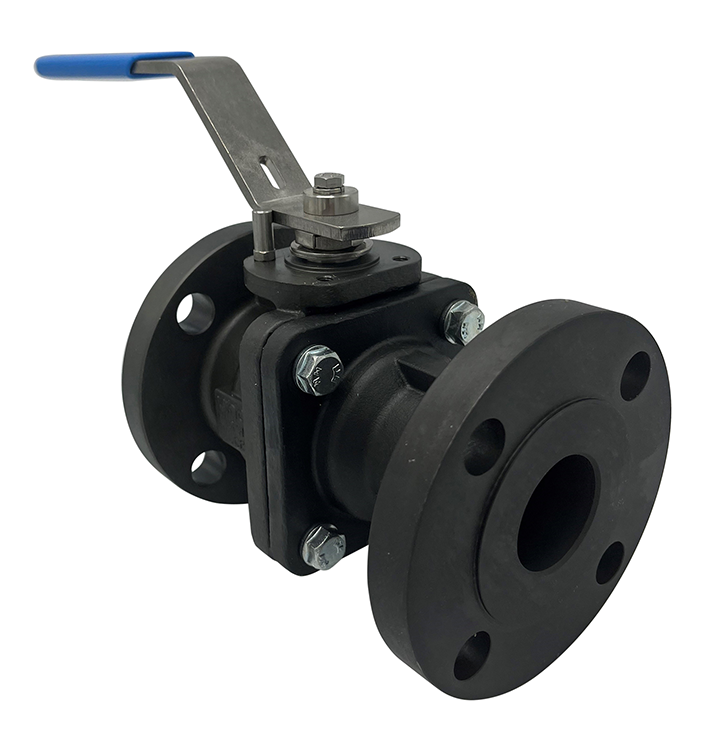

VINCO CF
INDUSTRIAL BALL VALVE
- Material
- Stainless Steel
- Sizes
- 1/2" - 4"
- Connection
- Flanged
- Pressure
- 16 - 40 Bar Rated
From
£286.00ex VAT
Choose an article number from the sizes & pricing table to add it to your quote, or send us an enquiry.
Need help choosing? Call our sales engineers on 01608 645755
Standard Features
- Floating ball | Soft seated | Bidirectional
- Full Bore
- Fire safe design | Antistatic design
- Low emission packing | Live loaded stem packing
- Double encapsulated body sealing
- ISO 5211 top works for automation
- Anti blowout stem
- Self relieving seats | Pressure equalizing hole
Optional Features
- Upstream pressure relief hole
- V-Port for flow control applications
- Food grade compatible version (CE1935/2004 version)
| Model | CF |
|---|---|
| Material | Stainless Steel |
| Sizes | 1/2" - 4" |
| Connection | Flanged |
| Pressure | 16 - 40 Bar Rated |
| Division | Steam |
| Category | Isolation Valves |
| Type | Ball Valves |
Use the enquiry form below to ask about this product, or add a quantity to any line and press Add to build a sales order. Open the basket icon at the top of the page to review and send it.
PLEASE NOTE: the prices shown are full list prices. If you have an account with us these will be updated by our team once your order is placed.
| Article no. | Description | Price £ | Price € | Quantity |
|---|---|---|---|---|
| 782404 | CF | DN15 (1/2") PN40 SS BALL VALVE | £286.00 | €300.00 | |
| 782405 | CF | DN20 (3/4") PN40 SS BALL VALVE | £337.00 | €354.00 | |
| 782406 | CF | DN25 (1") PN40 SS BALL VALVE | £378.00 | €397.00 | |
| 782407 | CF | DN32 (11/4") PN40 SS BALL VALVE | £516.00 | €541.00 | |
| 782408 | CF | DN40 (11/2") PN40 F4 SS BALL VALVE | £603.00 | €633.00 | |
| 782410 | CF | DN50 (2") PN40 F4 SS BALL VALVE | £800.00 | €840.00 | |
| 782112 | CF | DN65 (21/2") PN16 SS BALL VALVE | £1,042.00 | €1,094.00 | |
| 782412 | CF | DN65 (21/2") PN40 F4 SS BALL VALVE | £1,170.00 | €1,228.00 | |
| 782114 | CF | DN80 (3") PN16 SS BALL VALVE | £1,370.00 | €1,438.00 | |
| 782414 | CF | DN80 (3") PN40 F4 SS BALL VALVE | £1,478.00 | €1,552.00 | |
| 782118 | CF | DN100 (4") PN16 SS BALL VALVE | £1,829.00 | €1,920.00 | |
| 782418 | CF | DN100 (4") PN40 F4 SS BALL VALVE | £2,048.00 | €2,151.00 |
