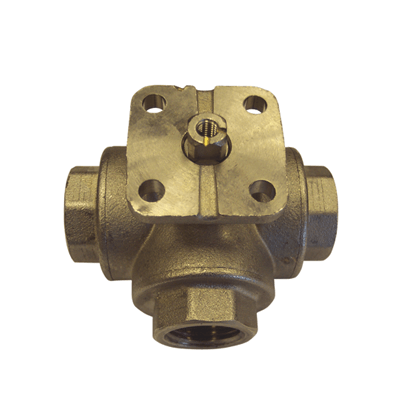

ASTORI 173 & 174
3 WAY BALL VALVE FOR ACTUATION

These manual ball valves feature ISO Top mounting pads suitable for pneumatic or electric actuator installation. Manufactured from nickel-plated brass construction in L-port or T-port configurations for either 2-way or 3-way flow control applications. Ideal for water, air, and compatible fluids in industrial systems where reliable on/off control is required

Material
Brass
Sizes
1/4" to 3"
Connection
Threaded
Pressure
40 - 25 Bar Rated
Design
3 way, ISO 5211
From
£52.00ex VAT
Choose an article number from the sizes & pricing table to add it to your quote, or send us an enquiry.
See sizes & pricing Enquire

Need help choosing? Call our sales engineers on 01608 645755

Standard Features

  • Nickel plated brass construction
  • L-port or T-port configuration
  • Upto 40 Bar pressure rating
  • Full bore
  • ISO 5211 mounting pad

Optional Features

  • Fitted with Limit Switches / Switchbox
  • Pneumatic or Electrical Actuation options
Model173, 174
MaterialBrass
Sizes1/4" to 3"
ConnectionThreaded
Pressure40 - 25 Bar Rated
Design3 way, ISO 5211
BrandASTORI
DivisionManual Valves
CategoryBall Valves

Use the enquiry form below to ask about this product, or add a quantity to any line and press Add to build a sales order. Open the basket icon at the top of the page to review and send it.

PLEASE NOTE: the prices shown are full list prices. If you have an account with us these will be updated by our team once your order is placed.
Article no.DescriptionPrice £Price €Quantity
174021/4" 3-WAY BRASS L-PORT BSP DIRECT MOUNT£52.00€54.00
174033/8" 3-WAY BRASS L-PORT BSP DIRECT MOUNT£52.00€54.00
174041/2" 3-WAY BRASS L-PORT BSP DIRECT MOUNT£67.00€71.00
174053/4" 3-WAY BRASS L-PORT BSP DIRECT MOUNT£95.00€100.00
174061" 3-WAY BRASS L-PORT BSP DIRECT MOUNT£130.00€137.00
1740711/4" 3-WAY BRASS L-PORT BSP DIRECT MOUNT£189.00€198.00
1740811/2" 3-WAY BRASS L-PORT BSP DIRECT MOUNT£294.00€309.00
174102" 3-WAY BRASS L-PORT BSP DIRECT MOUNT£468.00€492.00
173021/4" 3-WAY BRASS T-PORT BSP DIRECT MOUNT£61.00€64.00
173033/8" 3-WAY BRASS T-PORT BSP DIRECT MOUNT£56.00€58.00
173041/2" 3-WAY BRASS T-PORT BSP DIRECT MOUNT£67.00€71.00
173053/4" 3-WAY BRASS T-PORT BSP DIRECT MOUNT£96.00€100.00
173061" 3-WAY BRASS T-PORT BSP DIRECT MOUNT£130.00€137.00
1730711/4" 3-WAY BRASS T-PORT BSP DIRECT MOUNT£189.00€198.00
1730811/2" 3-WAY BRASS T-PORT BSP DIRECT MOUNT£294.00€309.00
173102" 3-WAY BRASS T-PORT BSP DIRECT MOUNT£468.00€492.00
